KA-250
Back to products
Two-wing auto-revoling door
Click to enlarge

Medical Automatic Sliding Door

Category:
Description

Product Features

  1. It has long-lasting, waterproof, anti-impact, anti-bacterial, sound- proof, anti-static, fire-resistantand so on.
  2. Different sizes of window decorative surfaces can be set according to the functions ofdifferentenvironments in the hospital.
  3. Available in electrostatic powder coated panels or stainless steel panels, a variety of colors are available.
  4. High-quality hardware such as hinges, door locks, and door closers are available to meetdifferentneeds.
  5. This series of products is widely used in wards, examination rooms, doctor’s offices and otheraccess.

Technical Data

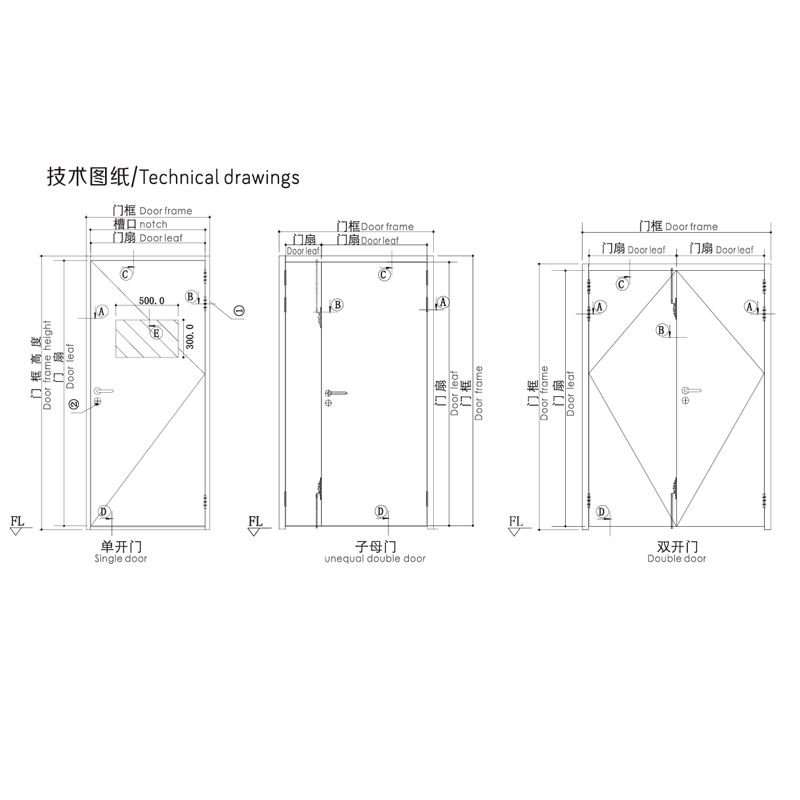

Door formsingle/ unequal double/ double open
Size rangewidth ≥500MM, height≥1900MM
Door leaf thickness40MM-60MM
Door frame thickness100MM-300MM
Door leaf material0.8 galvanized steel plate or 0.8 wood grain steel plate Or 0.8 stainless steel plate.
Door frame material1.5 galvanized steel or 1.5 wood grain steel Or 1.2 stainless steel plate.
Surface treatment electrostatic powder coating or surface
painting treatment.
Door leaf fillerhigh strength aluminum honeycomb or high
strength paper honeycomb.
